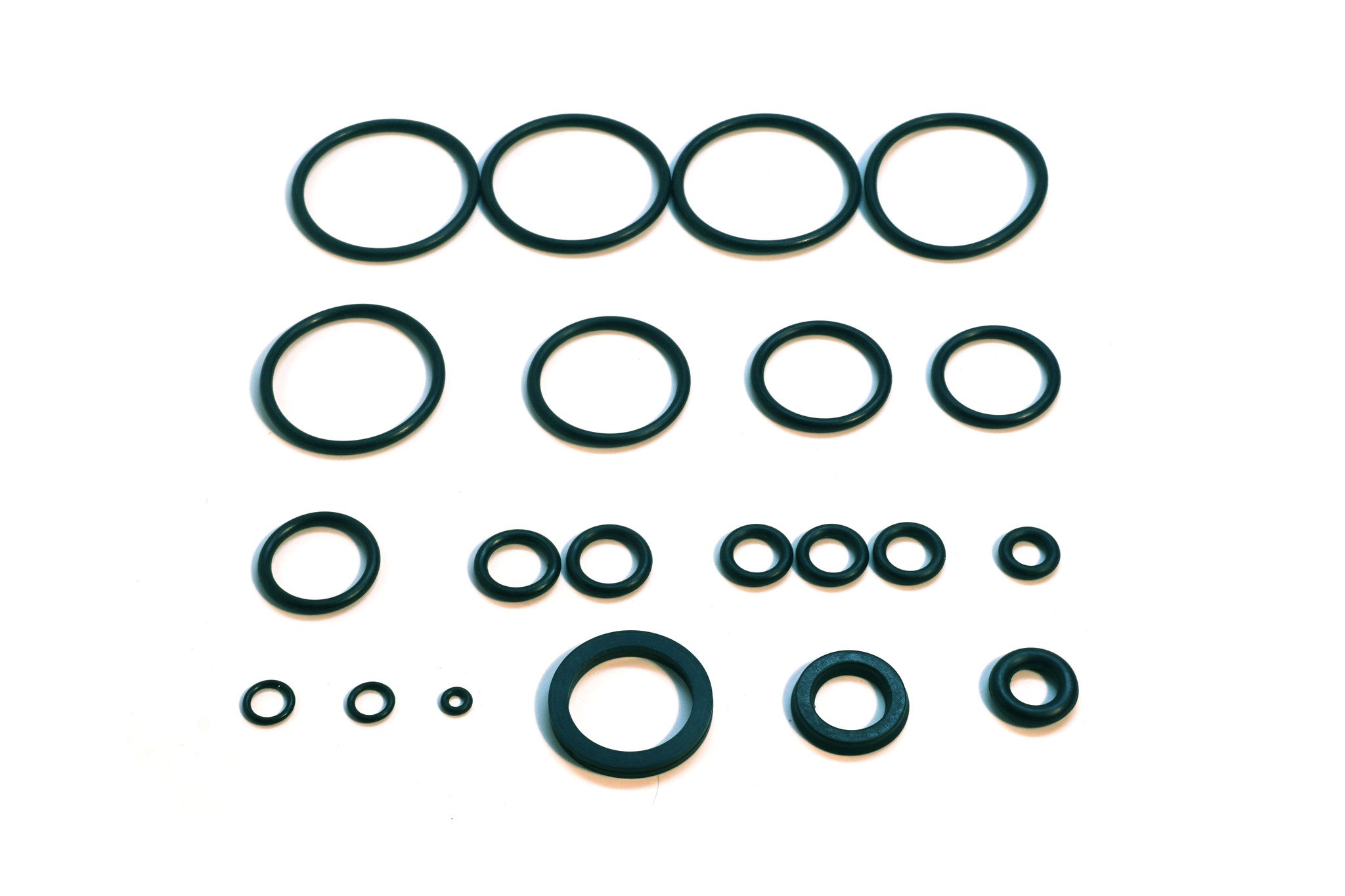

Field One Onslaught/Insight Complete O-Ring Rebuild Kit
$9.95
Unit price
/
Unavailable
By Field One
| Onslaught/Insight Complete O-Ring Rebuild Kit- Provides one complete o-ring rebuild for the marker and Cam Drive ASA | ||
| quantity | location | |
| 1x2mm O-Ring | 1 | Ram Housing to Back Block |
| 1x3mm O-Ring | 2 | Main Body to Manifold |
| 1x4mm O-Ring | 3 | Grip Frame to Body/ Ram Shaft to Pillow Bolt(Friction only)/ASA Main Seal Support |
| 1x4.5mm O-Ring | 3 | ASA to Grip Frame/ Main Body to Manifold |
| 1x7.5mm O-Ring | 1 | Main Body to Manifold |
| 1x9mm O-Ring | 1 | Main Body to Manifold |
| 1x13mm O-Ring | 1 | Ram Housing to Gas InterLock Housing |
| 1.5x20mm O-Ring | 1 | Main Body to Reg Center |
| 005 O-Ring | 1 | ASA Inside Main Seal |
| 008 O-Ring | 1 | Ram Shaft Bumper |
| 010 O-Ring | 5 | Ram Shaft Rear/ Inside of Brass Shutoff |
| 011 O-Ring | 3 | Gas InterLock Button/Reg Center to Main Body/Belville Spring Stack Retainer |
| 014 O-Ring | 1 | Inside Ram Housing |
| 015 O-Ring | 3 | Bolt/ ASA Main Seal |
| 016 O-Ring | 1 | HPR Piston |
| 018 O-Ring | 1 | Reg Center to Reg Base |
| 020 O-Ring | 1 | Volume Chamber |
| 021 O-Ring | 4 | Outside of ram Housing/ Between Ram Housing and Volume Chamber |
| 108 O-Ring | 1 | Inside of Brass Shutoff |
| 114 Square O-Ring | 1 | Front of Volume Chamber-Bumper |
| U-Cup 3/8x9/16x3/32 O-Ring | 1 | Inside Front of Volume Chamber |
| 2x20mm O-Ring | 1 | Inside Back of Volume Chamber |
| Packaging: Single Zip Lock Bag |
