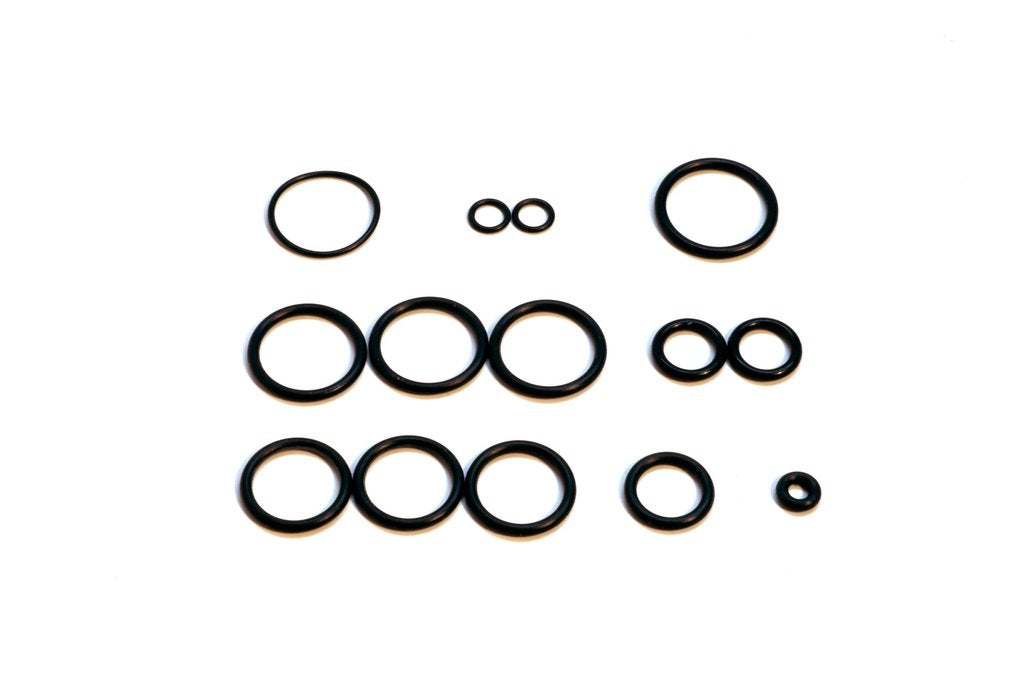

G6R Complete O-Ring Rebuild Kit
$9.99
Unit price
/
Unavailable
By Field One
Provides 1 complete o-ring rebuild for the marker and Cam Drive ASA. See below for description of contents and installation location. To view the G6R instruction manual Click HERE.
| G6R Complete O-Ring Rebuild Kit- Provides one complete o-ring rebuild for the marker and Cam Drive ASA | ||
| quantity | location | |
| 1x2mm O-Ring | 2 | Mainbody Rear to Manifold |
| 1x4mm O-Ring | 2 | Grip Frame to Manifold/ ASA Main Seal Support |
| 1x4.5mm O-ring | 2 | ASA to Grip Frame |
| 1x5mm O-Ring | 2 | Manifold to Main Body Front |
| 1x8mm O-Ring | 1 | Manifold to Main Body Rear |
| 1x13mm O-Ring | 1 | Main Body Rear to Manifold |
| 1x15mm O-ring | 1 | Ram Housing Back Cap |
| 1x18mm O-Ring | 1 | Main Body Front to Main Body Rear |
| 1.5x20mm O-Ring | 1 | Main Body Front to Inline Reg Center |
| 005 O-Ring | 1 | ASA Inside Main Seal |
| 006 O-Ring | 2 | Front of Ram/ Poppet Shaft |
| 008 O-Ring | 1 | LeverLock Adjuster Bolt |
| 011 O-Ring | 3 | Rear of Ram/ Belville Spring Stack Retainer/ Reg Center to Main Body Front |
| 012 O-Ring | 1 | LPR Piston |
| 014 O-Ring | 4 | LPR Housing/ Grip Frame to Main Body Housing |
| 015 O-Ring | 4 | Bolt/ ASA Main Seal |
| 016 O-Ring | 1 | HPR Piston |
| 018 O-Ring | 1 | Reg Center to Reg Base |
| Packaging: Single Zip Lock Bag |
